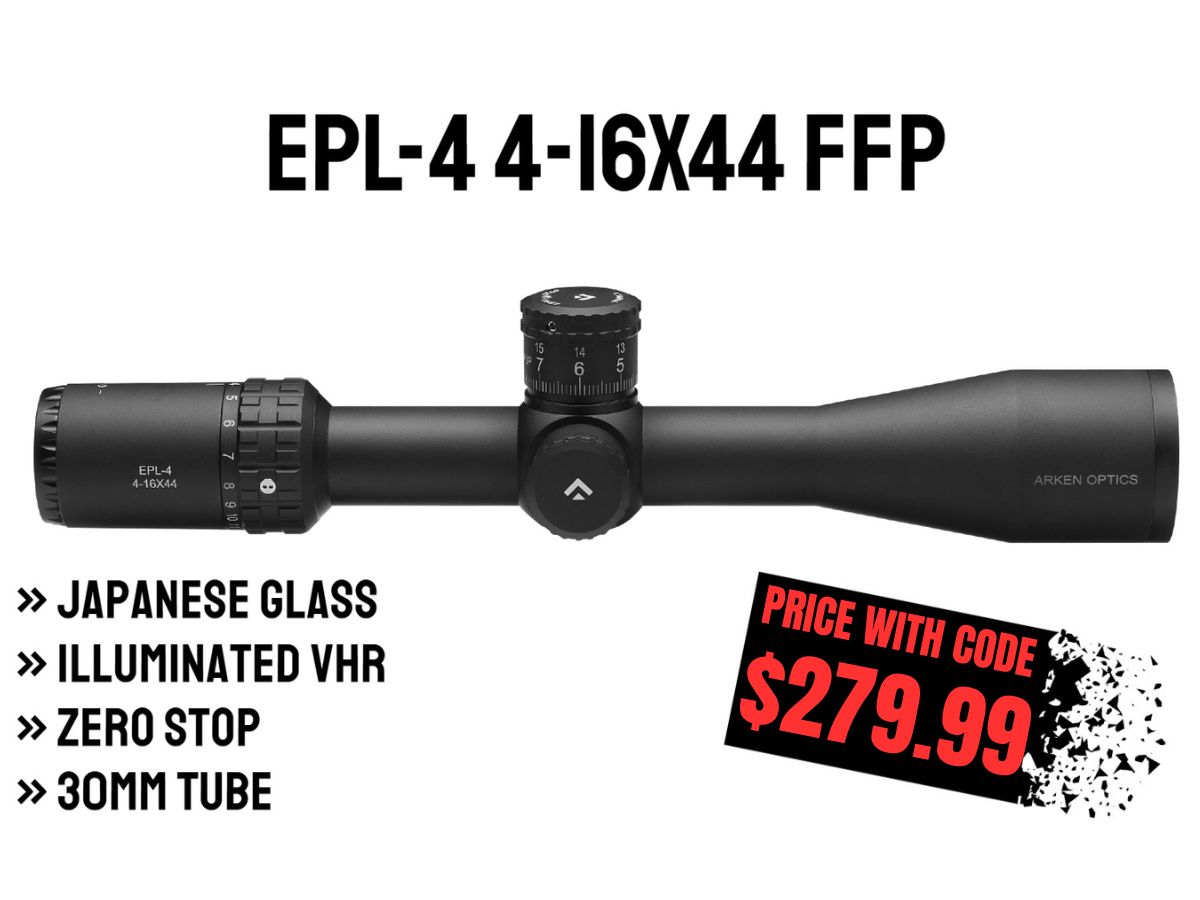

EPL-4 Manual

The EP-L (EP Light) is our Light Weight Hunter version of the EP (Extreme Precision) series. It is built on a streamline 30mm main tube to reduce overall weight with our toolless, easy to operate capped windage turret that lets you set and forget. Our Japanese ELD (Extraordinary Low Dispersion) and illuminated VHR (Variable Hunter Reticle) combine to provide astonishing optical performance making this a pleasure for users of all skill levels and disciplines.

Magnification: 4-16x

Objective Diameter: 44 mm

Eye Relief: 3.6 inches

Field of View: 30-7.5 ft @100 Yards

Tube Size: 30 mm

Turret Adjustment: 1/10 MRAD or 1/4 MOA

Reticle Position: First Focal Plane

Reticle Details: VHR

Zero Stop: AZS Zero Stop System

Zero Reset: Yes

Elevation Adj. Range: 25 MRAD - 86 MOA

Windage Adj. Range: 12 MRAD - 41 MOA

Elevation Adjustment Per Revolution: 8 MRAD - 20 MOA

Windage Adjustment Per Revolution: 6 MRAD - 15 MOA

Parallax: Side Parallax Adjustments, 10Yds-Infinity

Illuminated Reticle: Red

Turret Rotation: Counter Clockwise (CCW)

Length: 13.2 inches

Weight: 23.7 oz
